Azure Load Balancer

How to Create Load balancing in AZURE Cloud.



Why Load Balancing Required.



Load balancing is required to distribute workloads across multiple servers in order to improve performance, availability, and reliability. Without load balancing, a single server could become overloaded and unable to handle the demand, which could lead to downtime or poor performance.



Types:

·      Internal

·      Public



Here are some of the benefits of load balancing:

·      Improved performance

·      Increased availability

·      Enhanced reliability



Steps to create Load Balancer.

    Login to Azure Cloud Portal

    portal.azure.com



·      For example, only Creating 2 Virtual Machine in Azure Cloud

Note both Virtual Machine Network Interface will be same range series.





Creating Virtual Machine

Click to create new vm







NEED to create

Resource Group

Virtual Machines

       Select Operating System (Selected UBUNTU)

Virtual Network

Public IP

Allow Port (I am selecting http 80 Port)







VM Username and password





Creating Network Interface





Now review and create

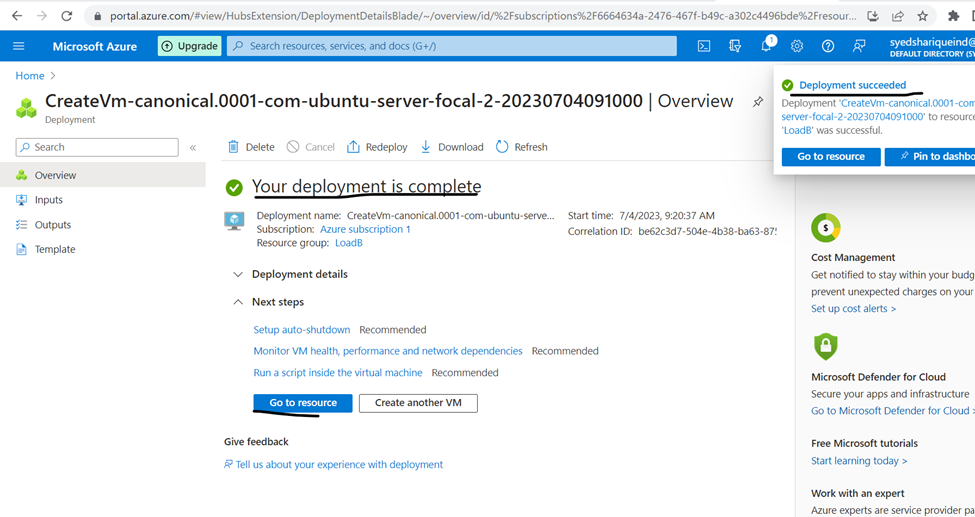

So, virtual machine created successfully









VM private IP and Public IP

Create one more VM in same series of IP Address  10.0.0.0

Having these 2 Virtual Machines







Now here Creating Load Balancer



Click to create Load Balancer



CREATING Public Load Balancer

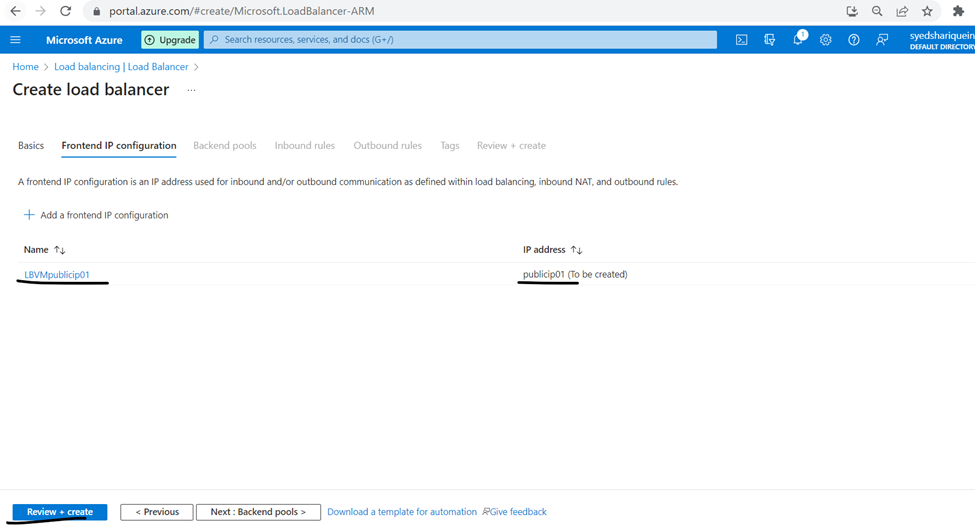

Now need to add frontend IP

Just assign name and public ip address name

and click to create



Now review and create

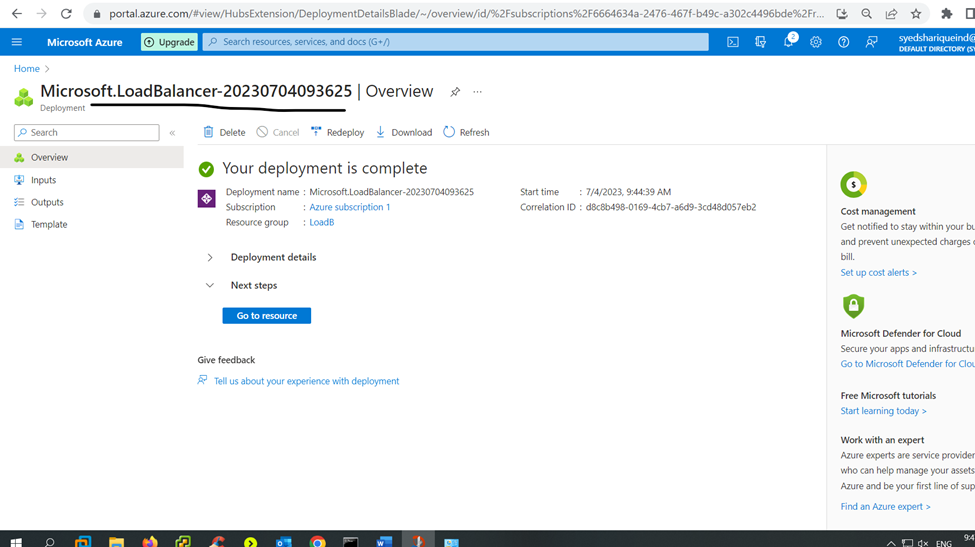

So created Load balancer





Now I am installing web server in virtual machine

Open ssh windows and connect to vm1 and vm2

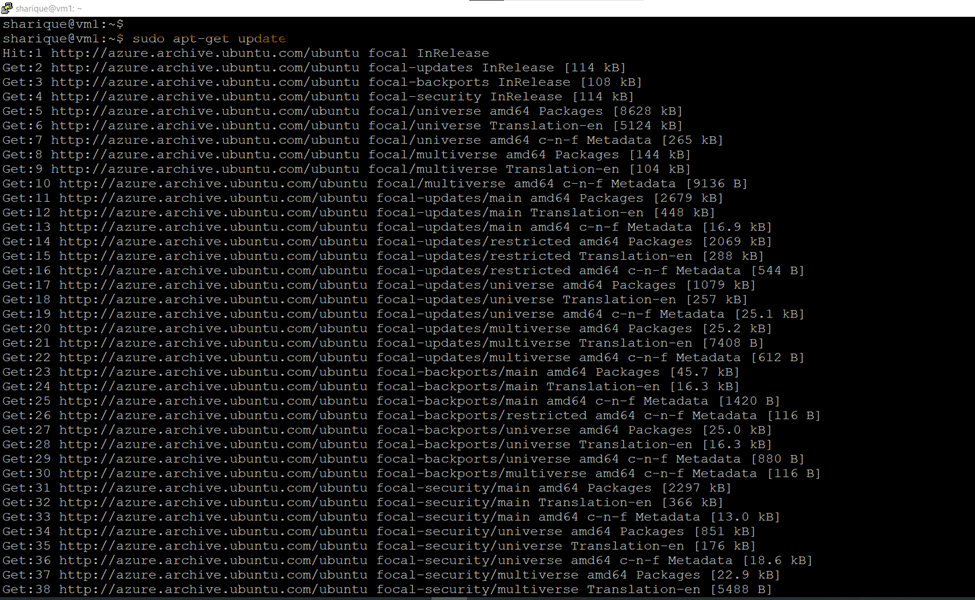

Logged and updating and upgrading



sharique@vm1:~$ sudo apt-get update && upgrade



now installing web server

Nginx is a web server that can also be used as a reverse proxy, load balancer, mail proxy and HTTP cache.



sharique@vm1:~$ sudo apt-get install nginx

Go to webserver directory and edit index page for easy to understand

sharique@vm1:/var/www/html$ sudo vi index.nginx-debian.html

So, web server is running

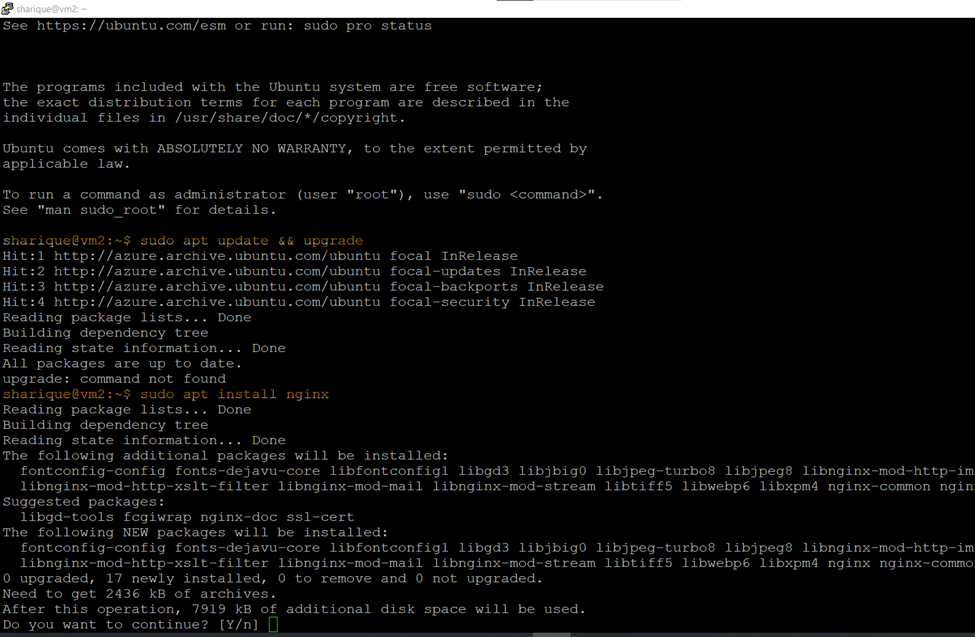

Follow same steps and upgrade and install web server in Virtual Machine 2 (vm2)

Load Balancer Web interface status automatic changing server

NOW here we will start The Load Balancer process.

Go to created load balancer

Check the fronted ip of Load balancer

Now create the backend pool

Click to add backend pool

Assign the name to backend pool

Here ether you can select NIC or IP Address

Select the vm and click to add

Now click to save

So backend pool created

Now need to create Health probes (it’s use to update vm status running or no)

Click to add health probes

Assign new name to health probes/ protocol port and click to save

Now here creating Load Balancing rule

(here I used to assign the load balancer tasks Load balancer will start there process)

Click to add rules

Already created fronted address backend pool and health probe just select the same and click to save

Here load balancer rule created

Now check the status of created load balancer

It’s load balancer Public IP

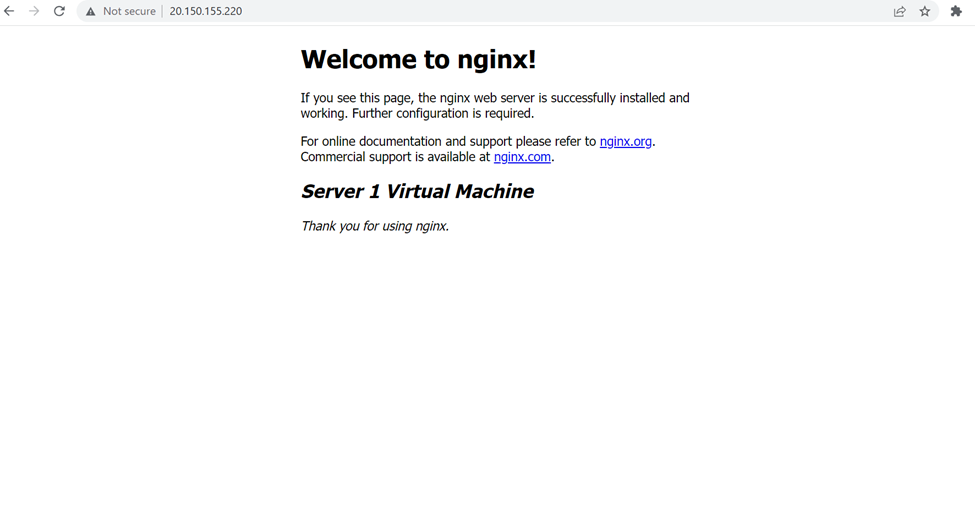

http://20.150.155.220/   — load balancer ip — so server is running with the help of Load balancer

ideal timeout 4 Minutes : in every 4 minutes it will automatic switch between servers.

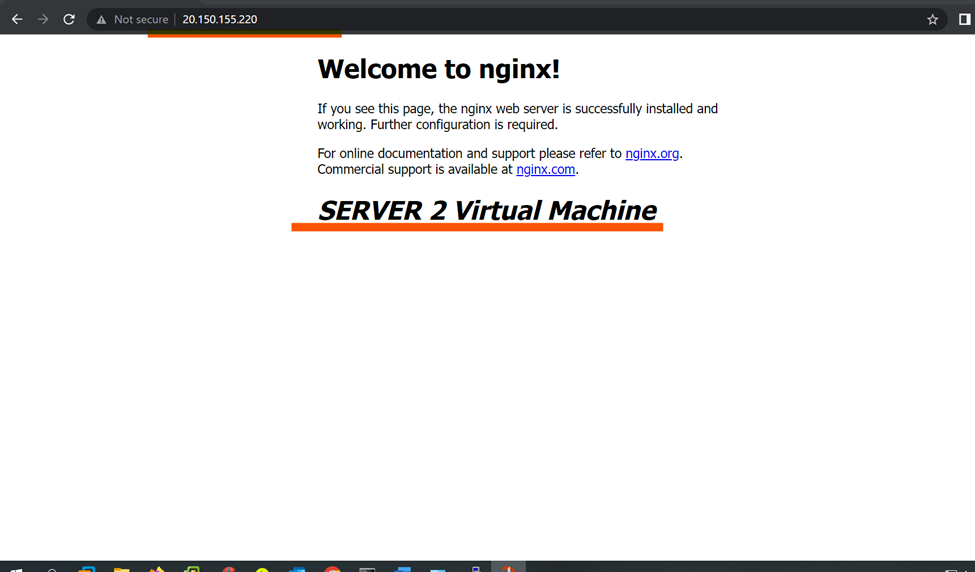

Same address virtual machine server 2

These are the steps to process Load balancer
