Golden Gate Installation and Configuration

Step by Step Oracle 12c Golden Gate Installation and Configuration

This document describes how to install Oracle 12c Golden Gate  and how to configure the replication.

Here created a directory structure goldengate we can create whatever we need to any specific name with permission in oracle user

Installation of Golden Gate in Source Database: 12C Golden Gate is GUI based installation and needs to be run runInstaller upon unzipping the software.

Need to create the directory in oracle user

[oracle@qp01 ~]$ mkdir -p goldengate

After that need to move to the created directory

[oracle@qp01 ~]$ cd goldengate

And transfer the goldengate software

So here  have uploaded the goldengate software via WinSCP

[oracle@qp01 goldengate]$ ls

We need to give the access permission to goldengate software

[oracle@qp01 goldengate]$ chmod 775 V975837-01.zip

After the permission will be change

And extract the file

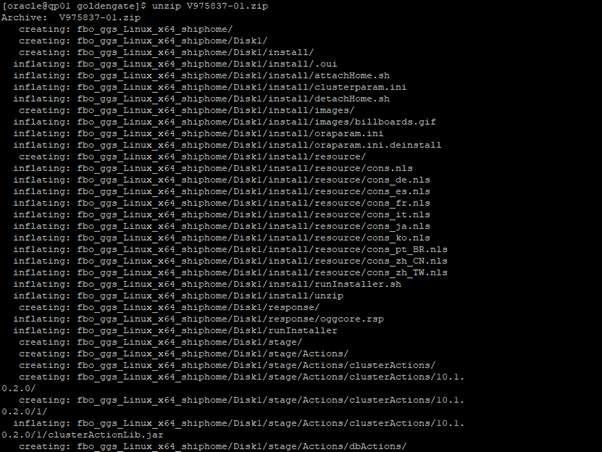

[oracle@qp01 goldengate]$ unzip V975837-01.zip

After the unzip the directory we will get the some new directory

Now here new files go to fbo_ggs

[oracle@qp01 goldengate]$ ls

So now we need to create goldengate home directory and assign them permission

[oracle@qp01 ~]$ mkdir -p /u01/app/oracle/product/gghome

[oracle@qp01 ~]$ cd /u01/app/oracle/product/gghome

Now we ned to go to disk1 directory inside the goldengate directory

[oracle@qp01 Disk1]$ ls

If we ever face unable to host errors we need to fixed it before runInstaller command execute

Errors solutions

[oracle@qp01 Disk1]$ ./runInstaller

Move to root directory and export the display, set the localuser

[root@qp01 ~]# export DISPLAY=:0

[root@qp01 ~]# xhost +SI:localuser:oracle

Start Oracle Universal Installer

[oracle@qp01 Disk1]$ ./runInstaller

So now we have to select the installation version

Now I am installing it on Oracle 12c so need to select 12c and whatever your version

Select “Oracle GoldenGate for Oracle database 12C and click on Next

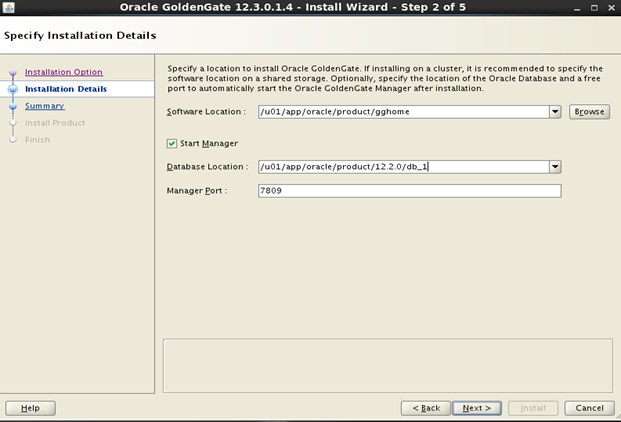

Here select the goldengate software location

Select location which we have created for GG home

Select database home location, port number for manager and click on Next.

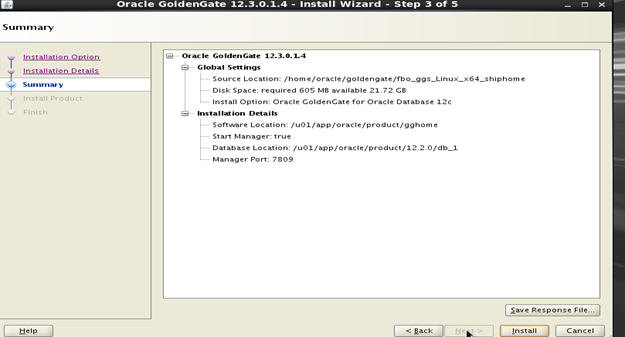

After that we can review the summery and click to install

Click on Install

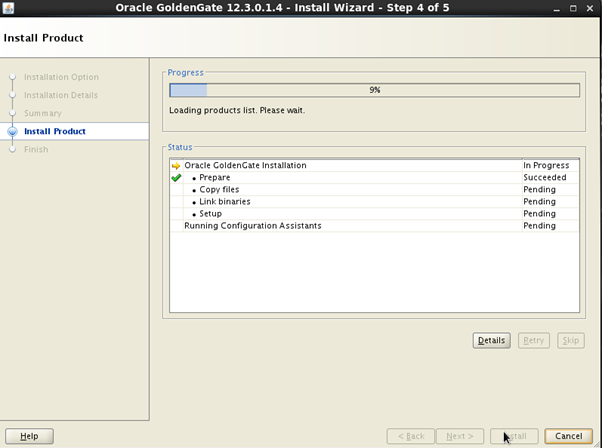

Installation Wizard

Now the successfully installation has been completed

Click on Close

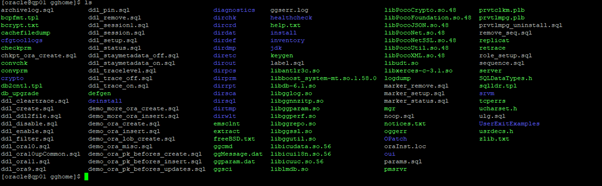

After the complete installation we will check the goldengate software

[oracle@qp01 gghome]$ ls
