Point to Site

Azure Point-to-Site VPN Setup

Create a Point-to-Site VPN connection in the Azure portal

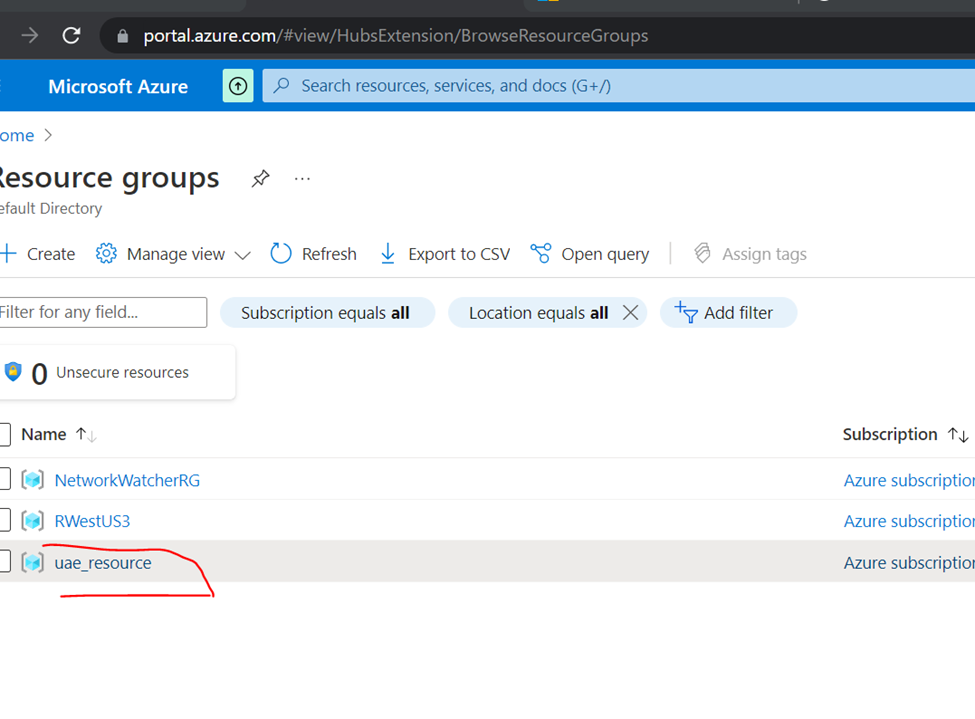

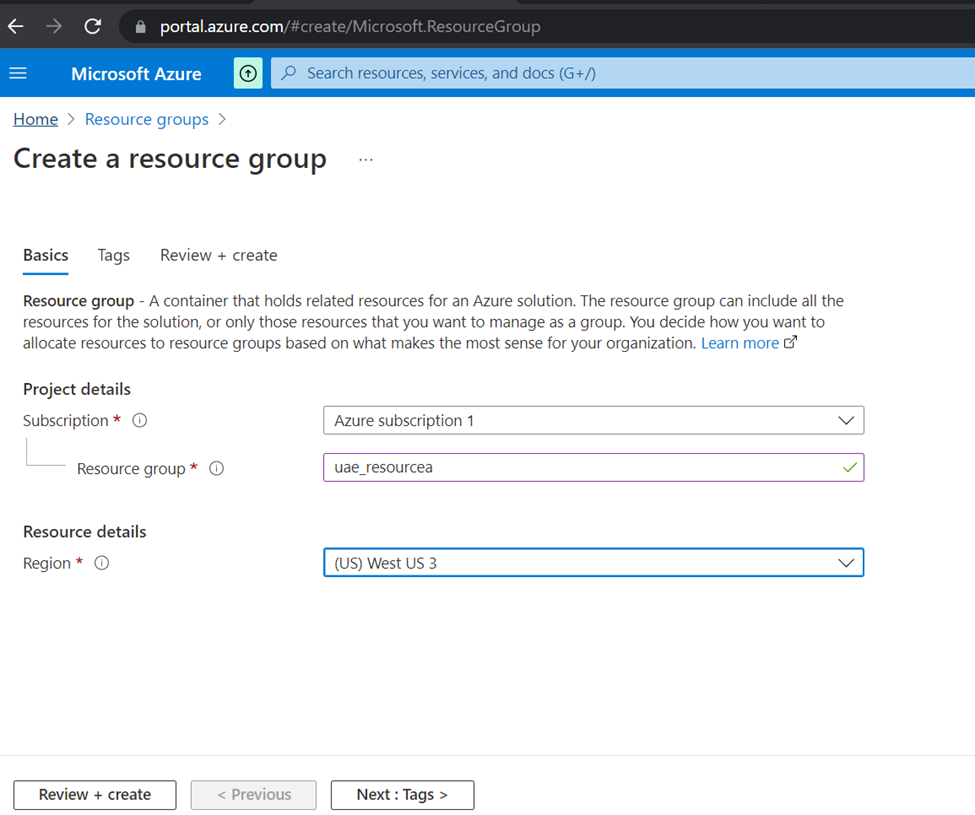

  1. Resource Group
  2. Azure Virtual Network

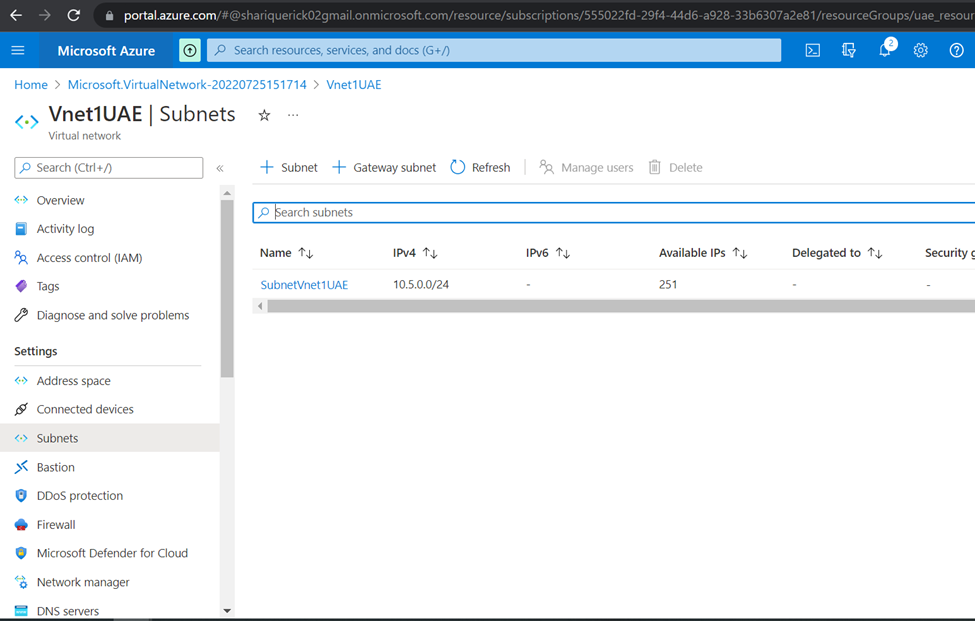

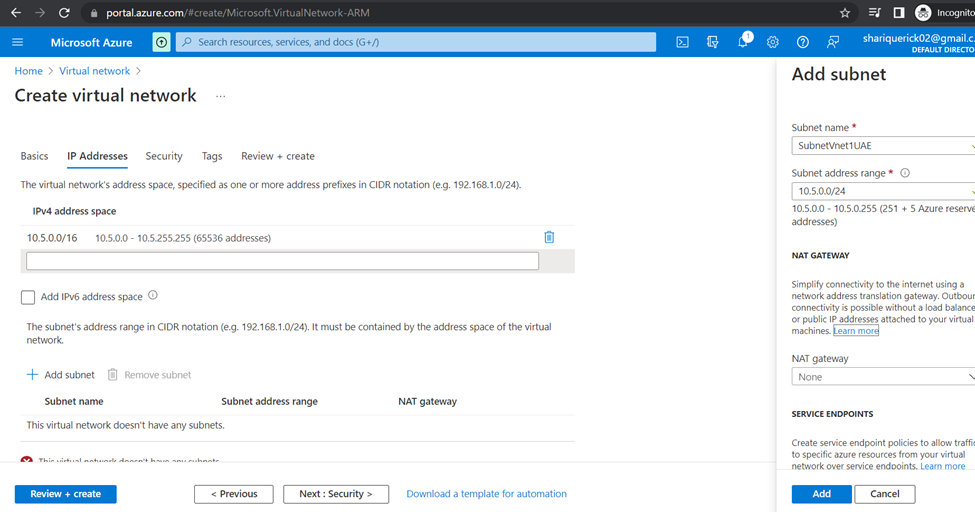

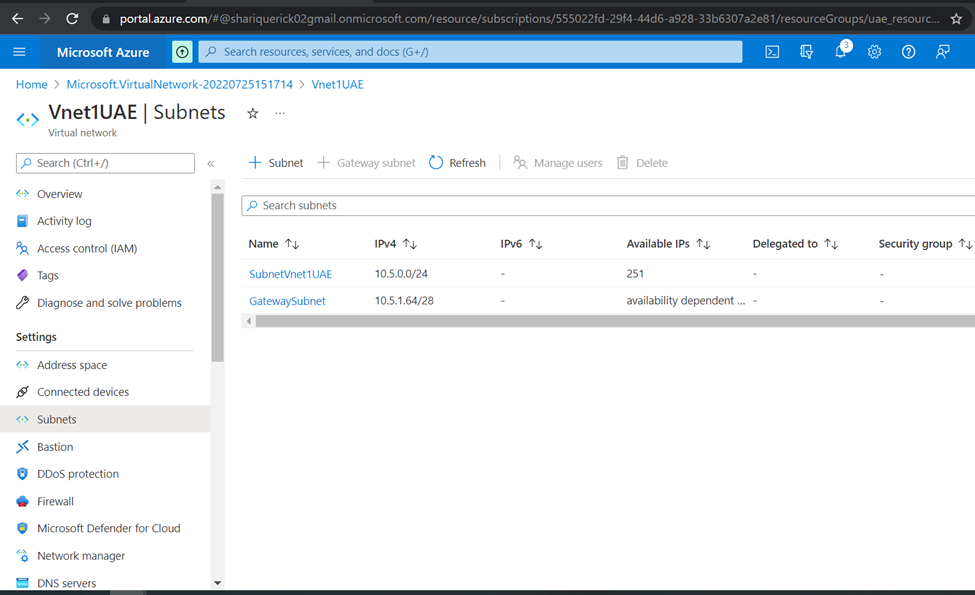

  3. Subnet

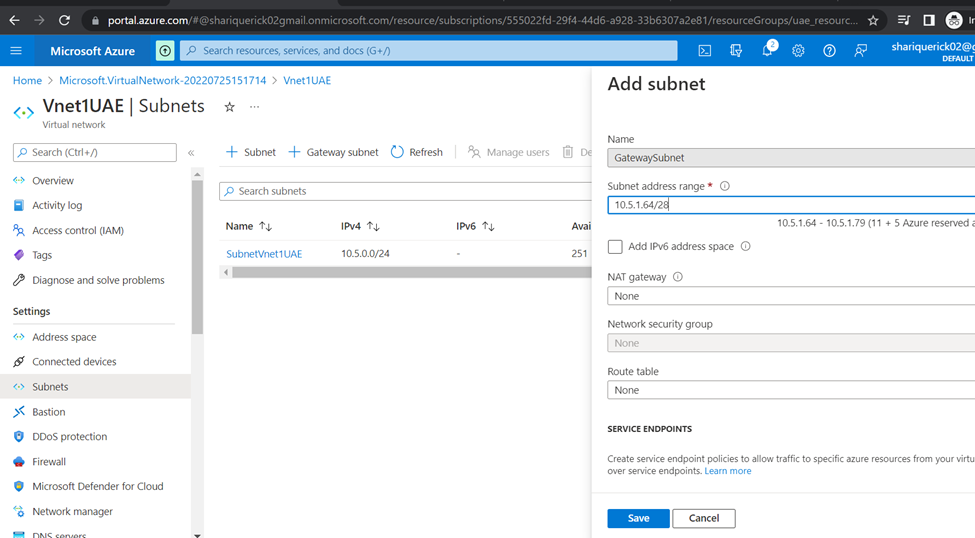

  4. Gateway Subnet

       b)    Virtual Private Gateway

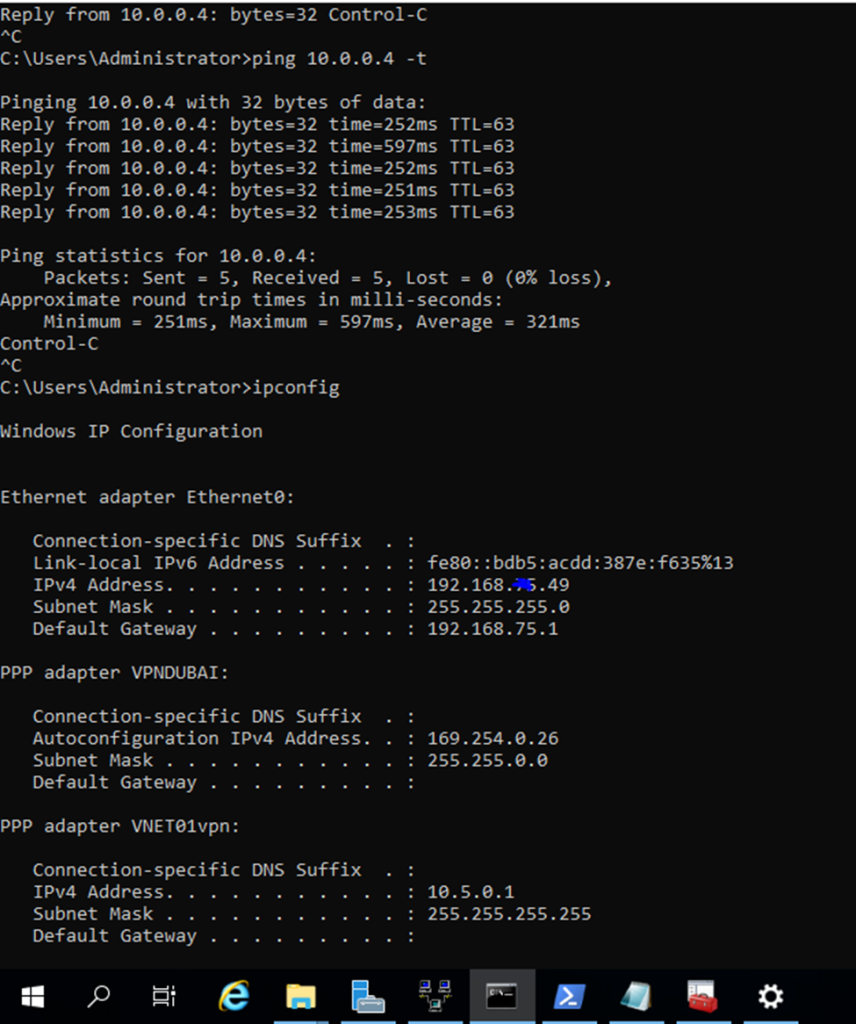

       c)     Create VM For testing

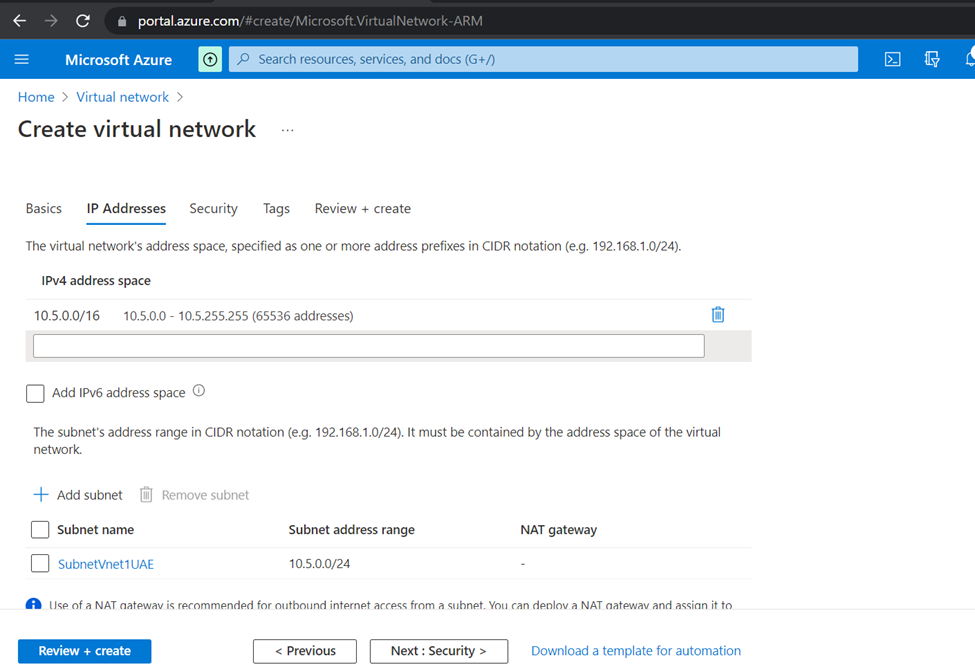

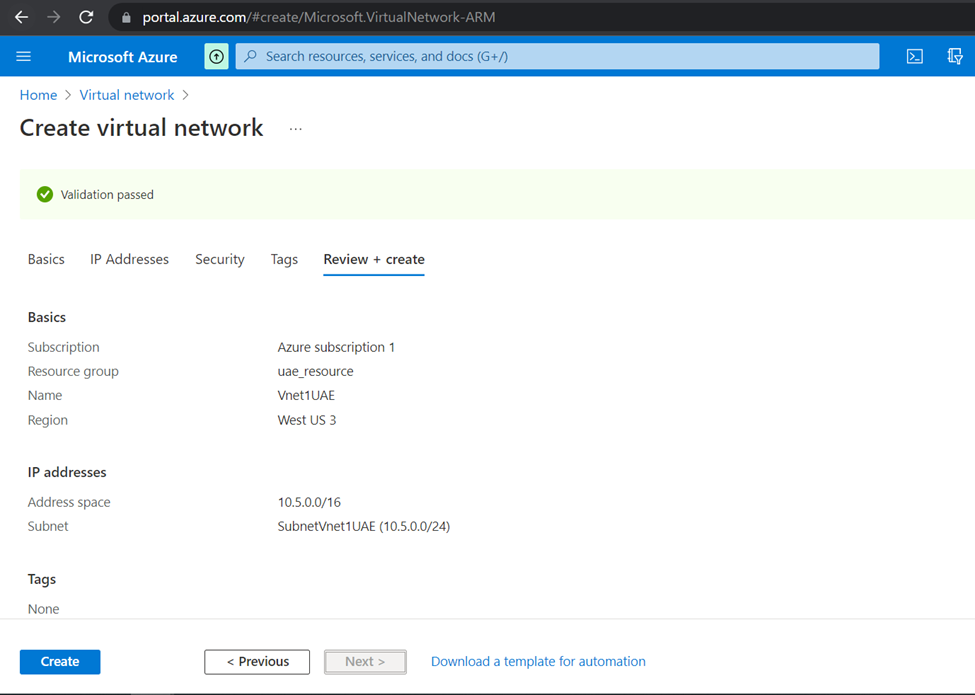

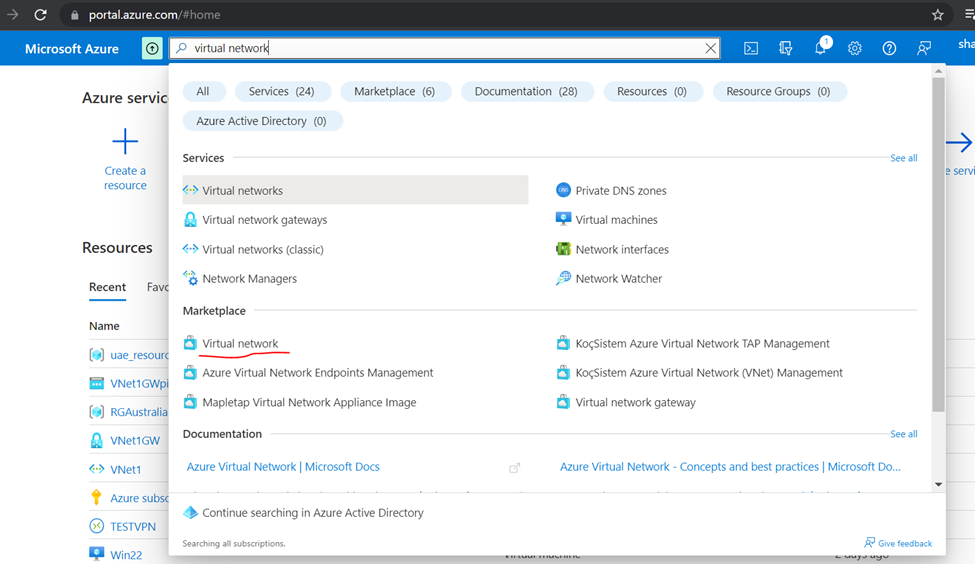

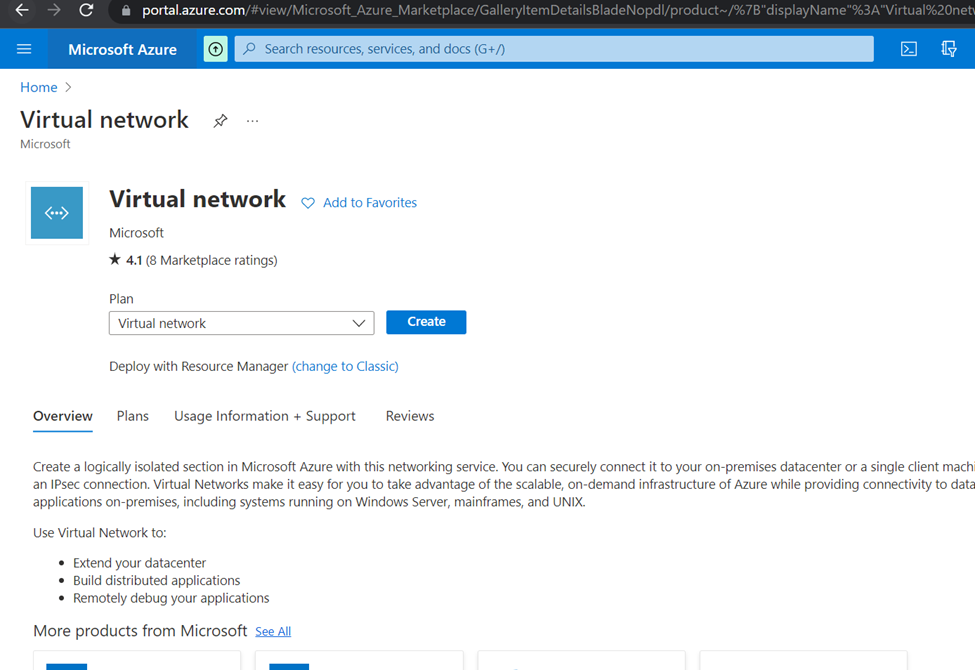

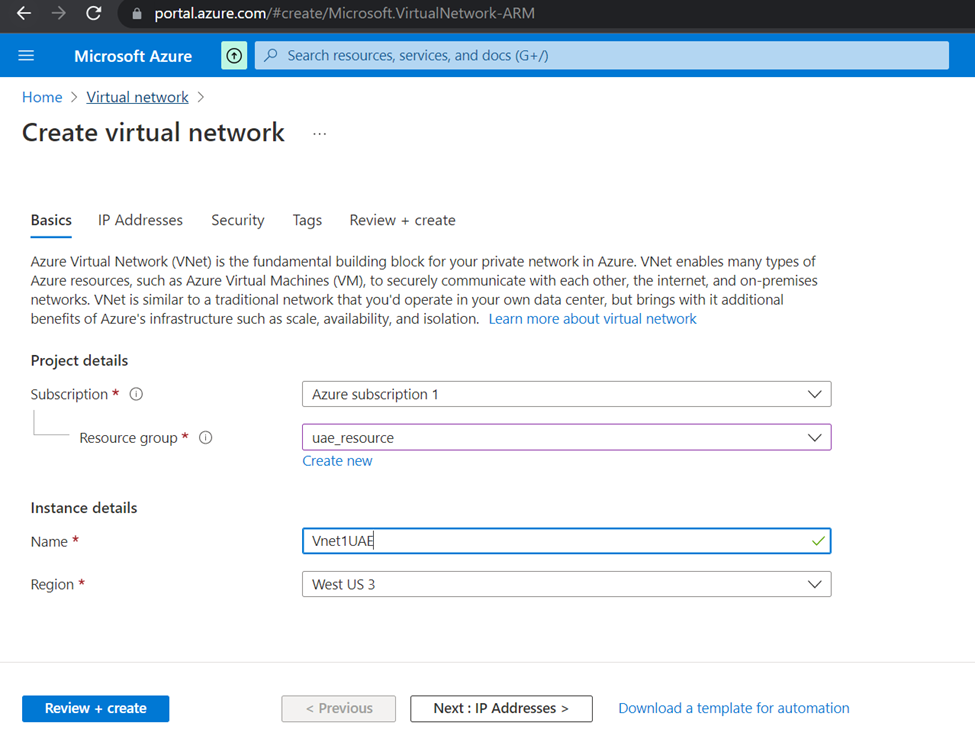

Create a virtual network

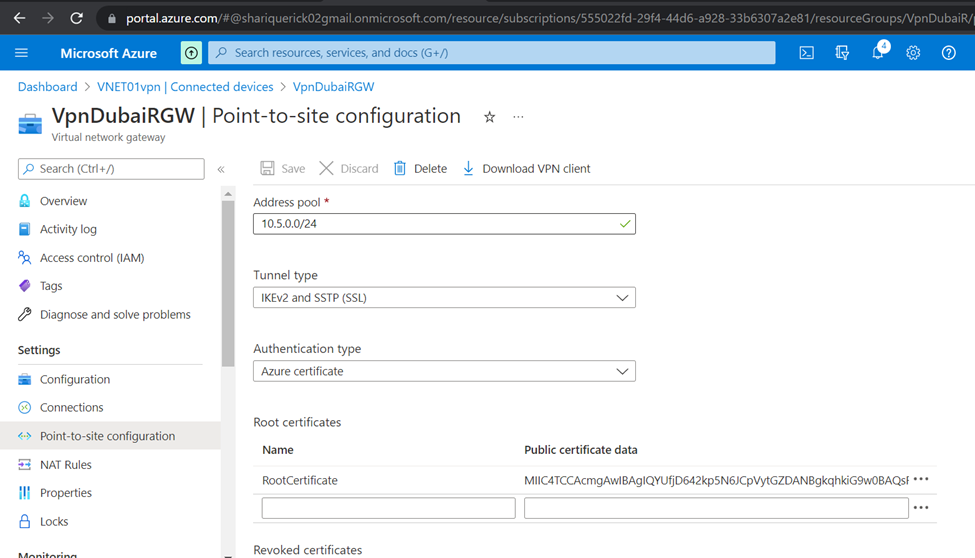

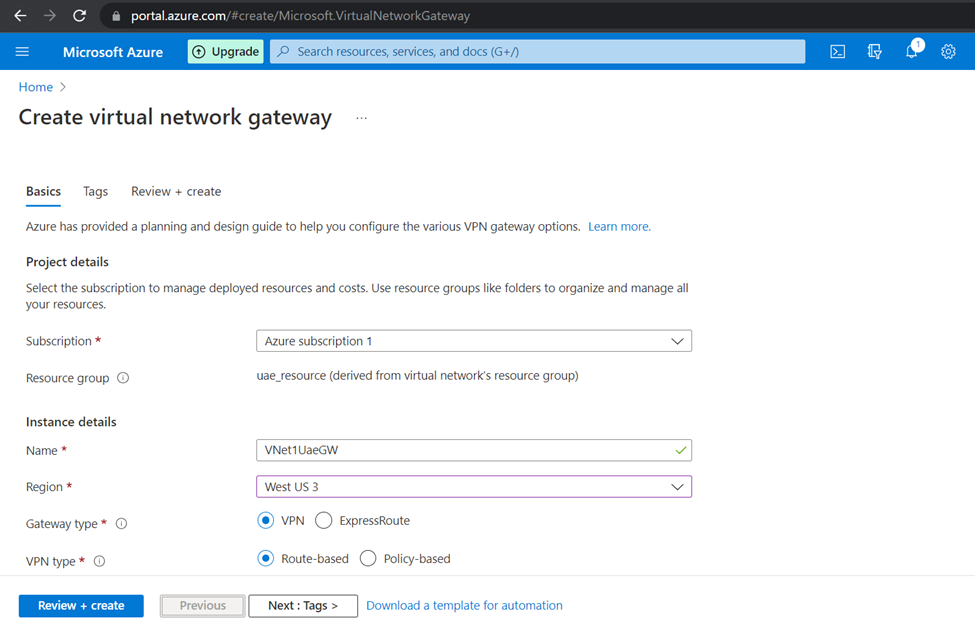

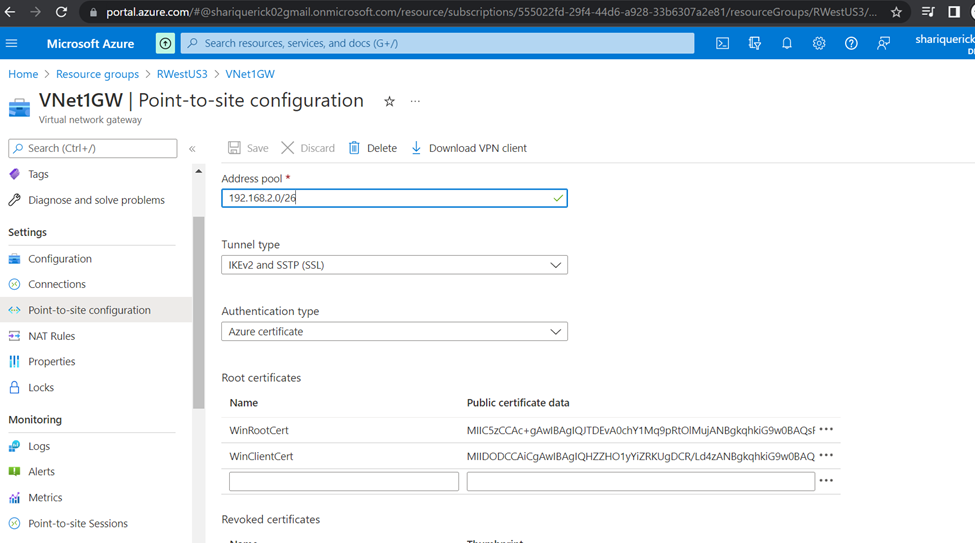

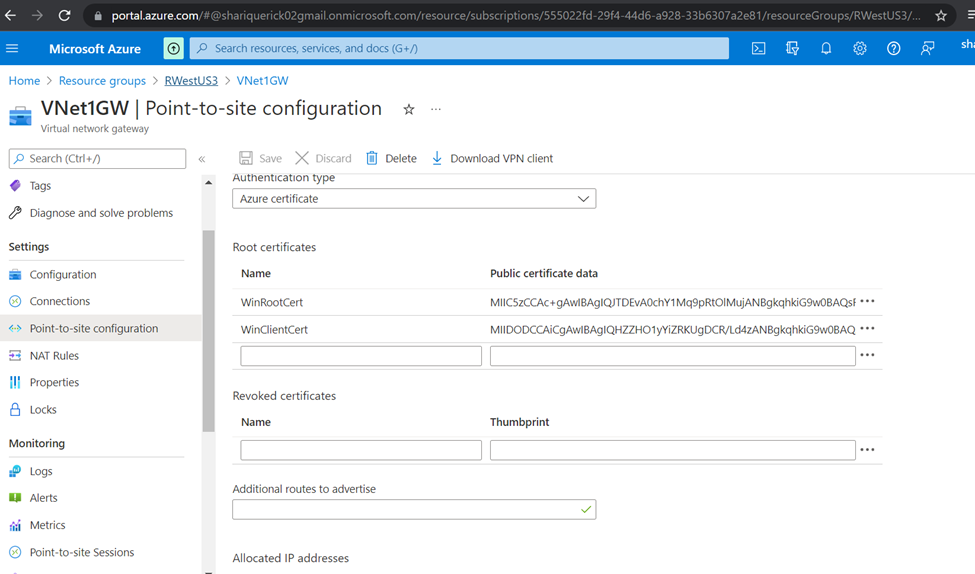

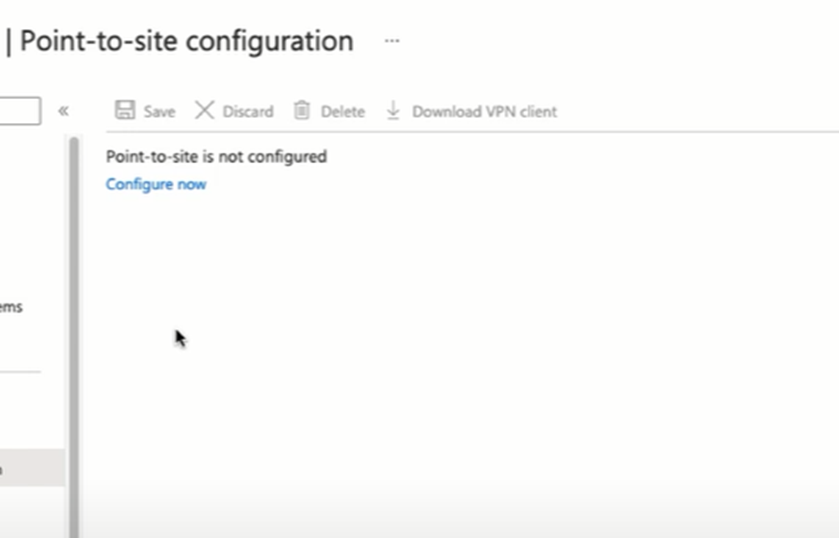

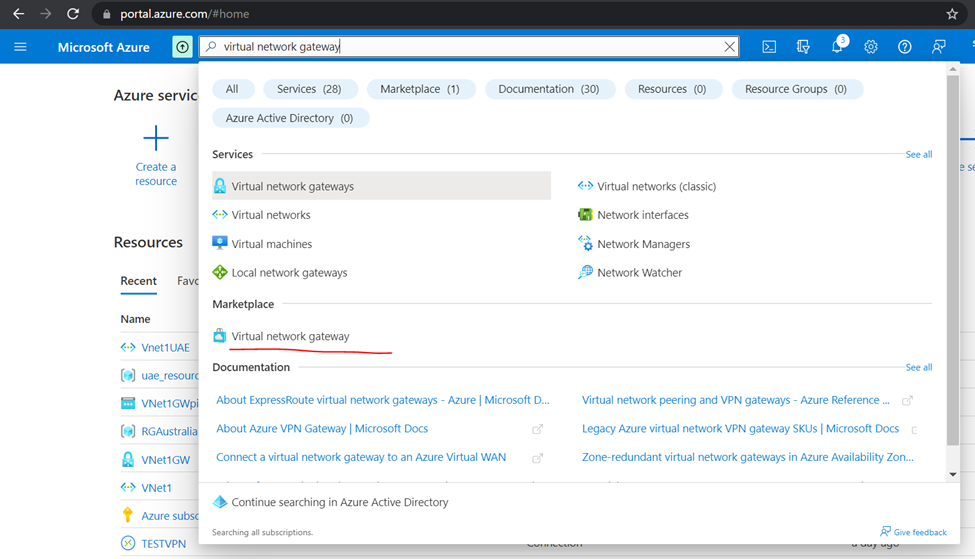

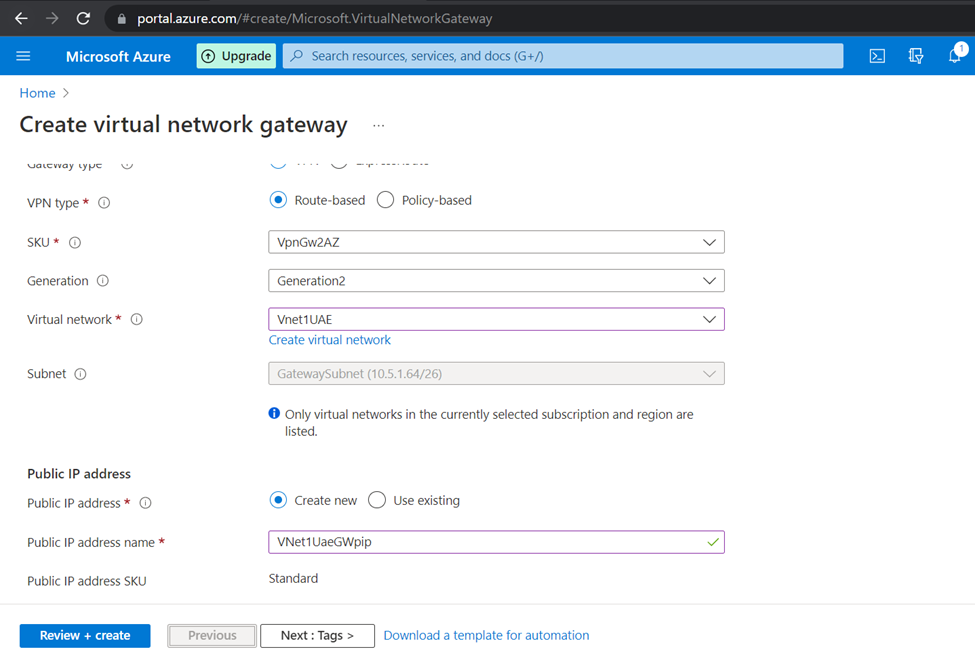

Virtual Network Gateway

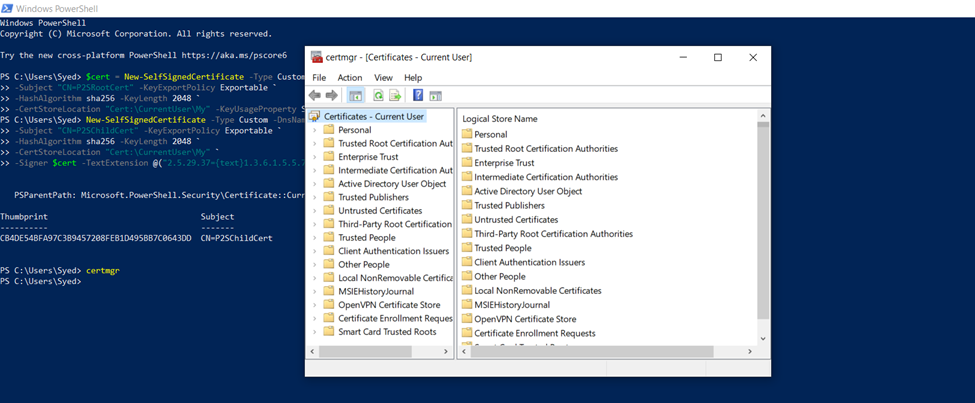

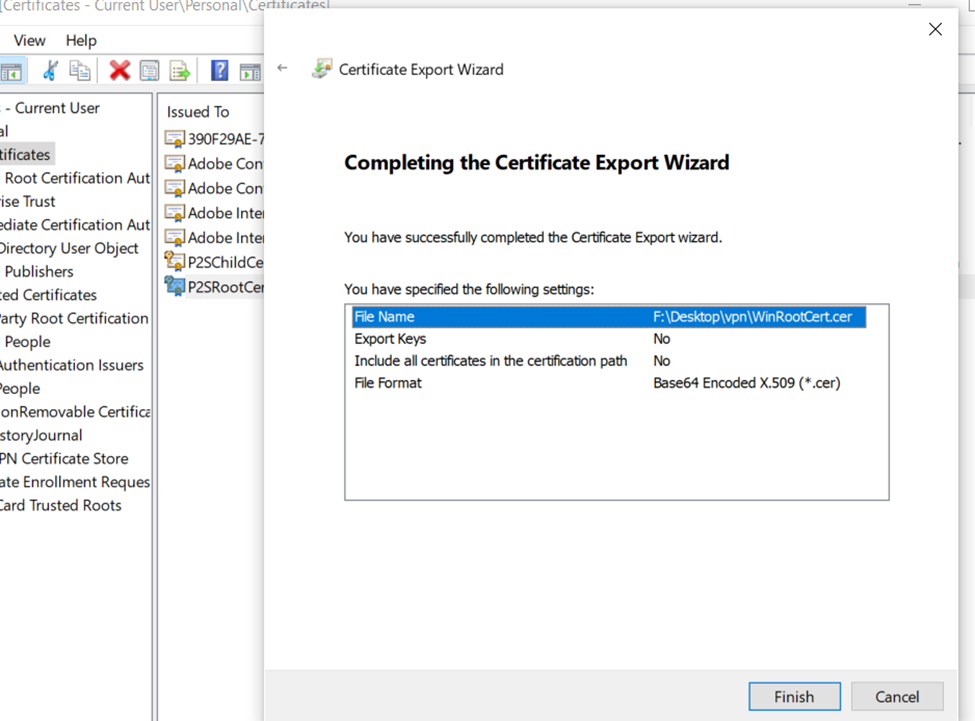

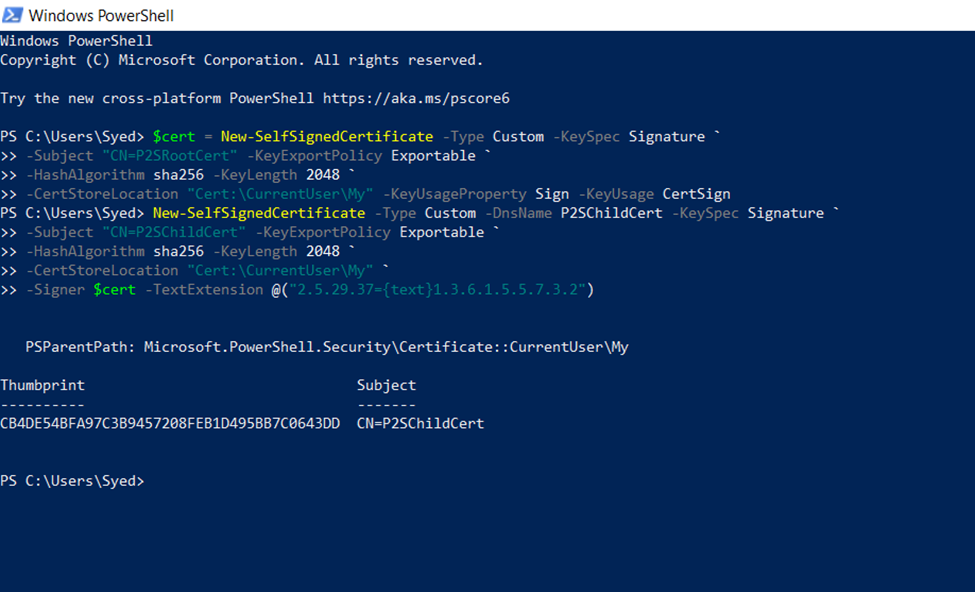

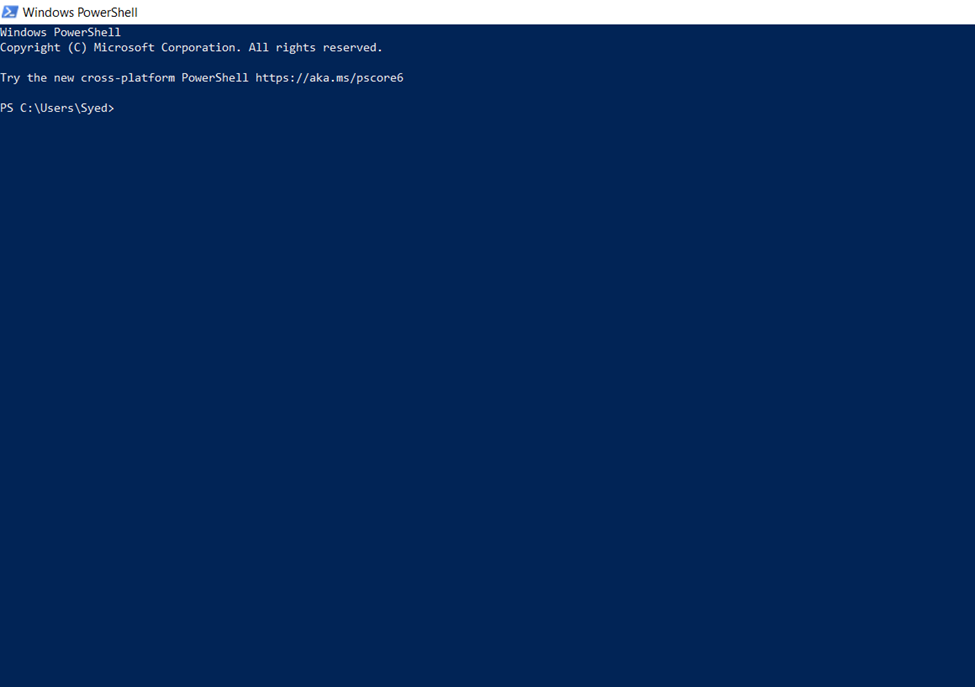

Powershell Local system

https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-certificates-point-to-site

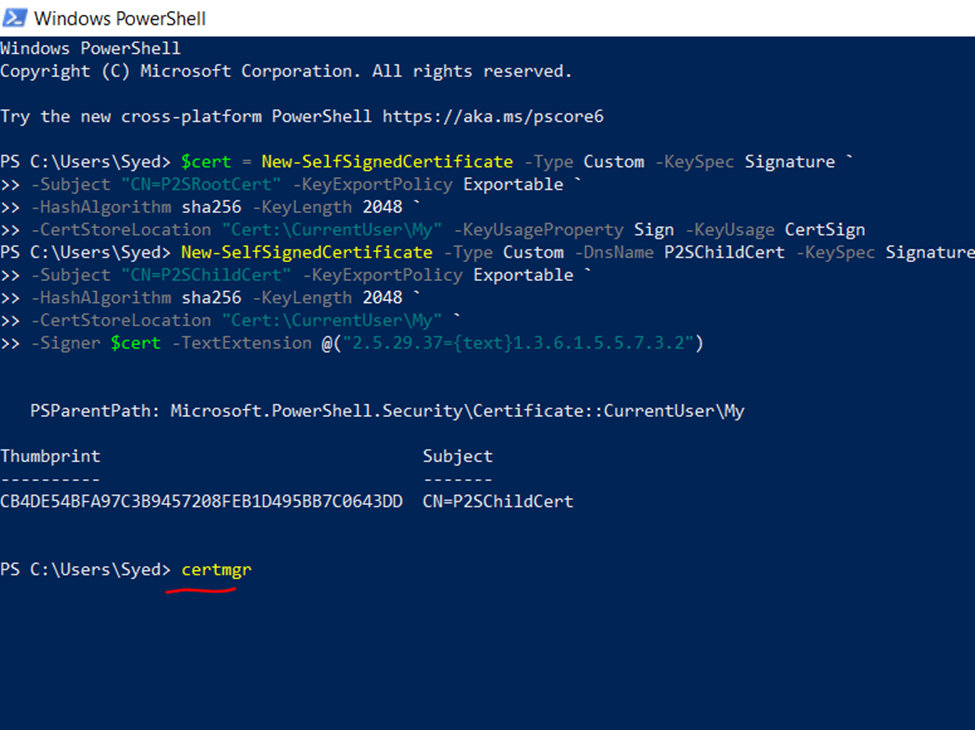

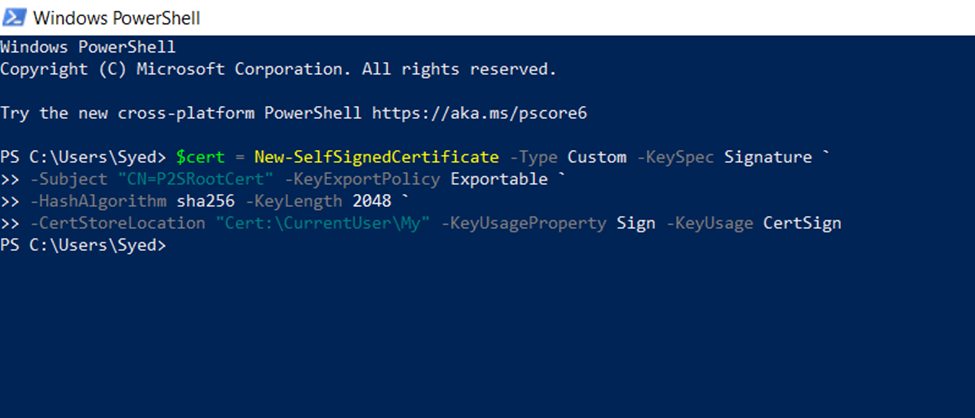

$cert = New-SelfSignedCertificate -Type Custom -KeySpec Signature -Subject "CN=P2SRootCert" -KeyExportPolicy Exportable
-HashAlgorithm sha256 -KeyLength 2048 `
-CertStoreLocation “Cert:\CurrentUser\My” -KeyUsageProperty Sign -KeyUsage CertSign

New-SelfSignedCertificate -Type Custom -DnsName P2SChildCert -KeySpec Signature -Subject "CN=P2SChildCert" -KeyExportPolicy Exportable
-HashAlgorithm sha256 -KeyLength 2048 -CertStoreLocation "Cert:\CurrentUser\My"
-Signer $cert -TextExtension @(“2.5.29.37={text}1.3.6.1.5.5.7.3.2”)

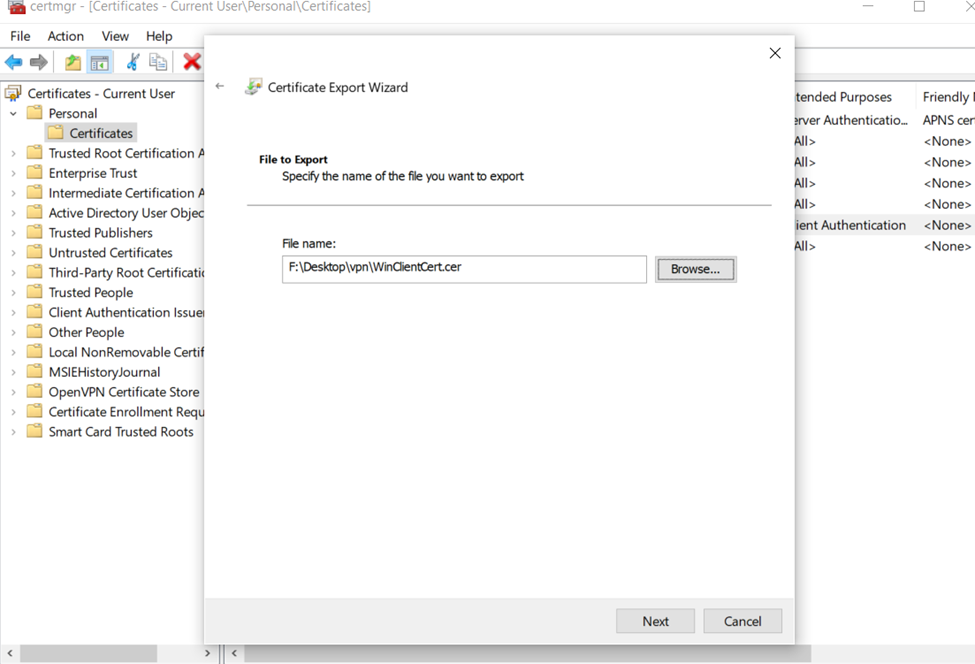

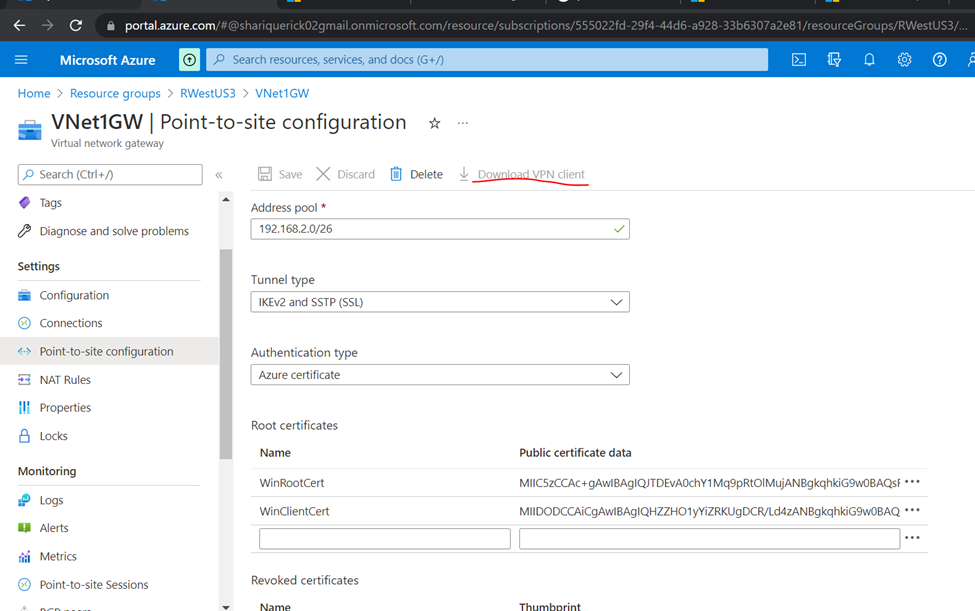

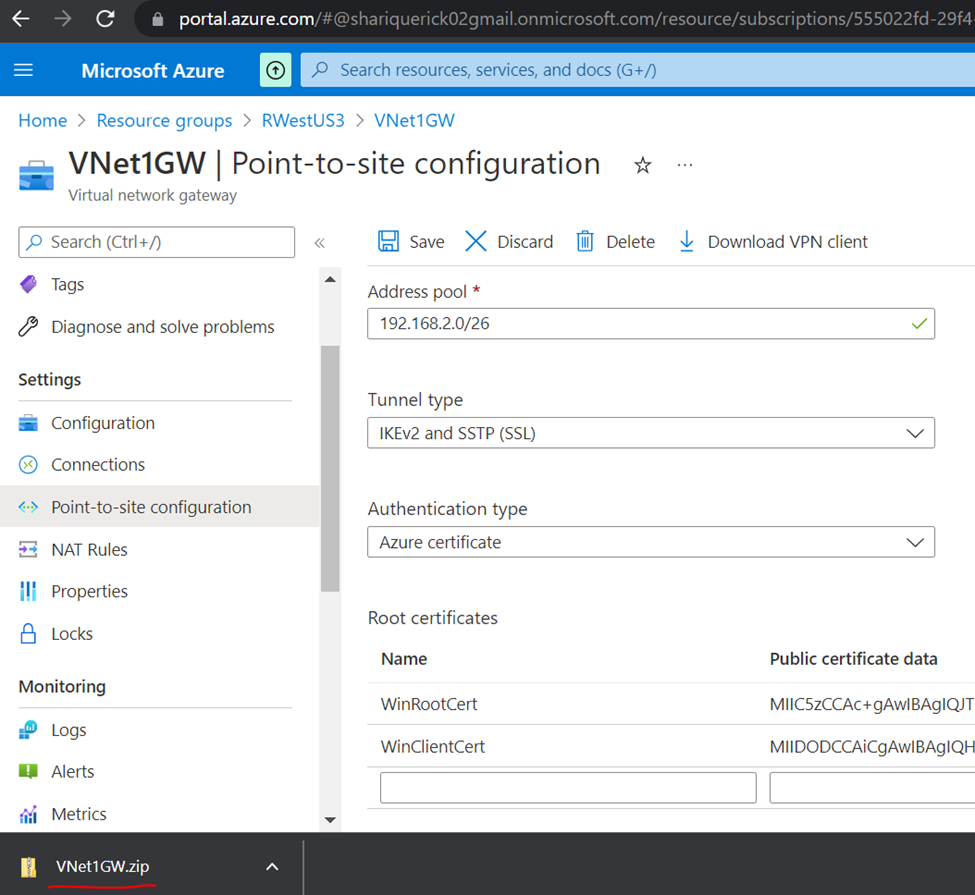

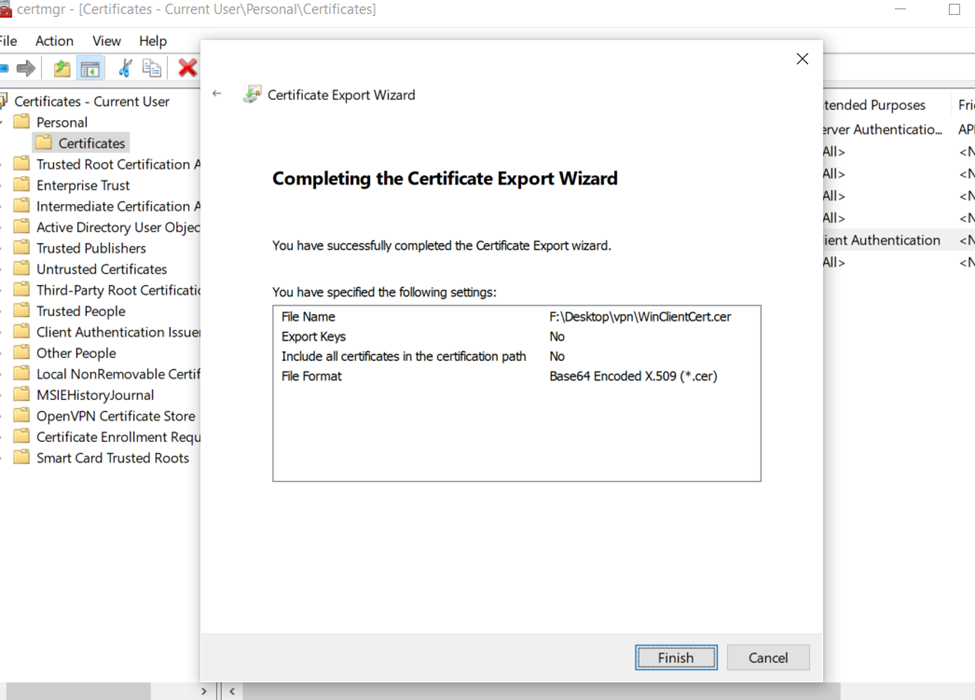

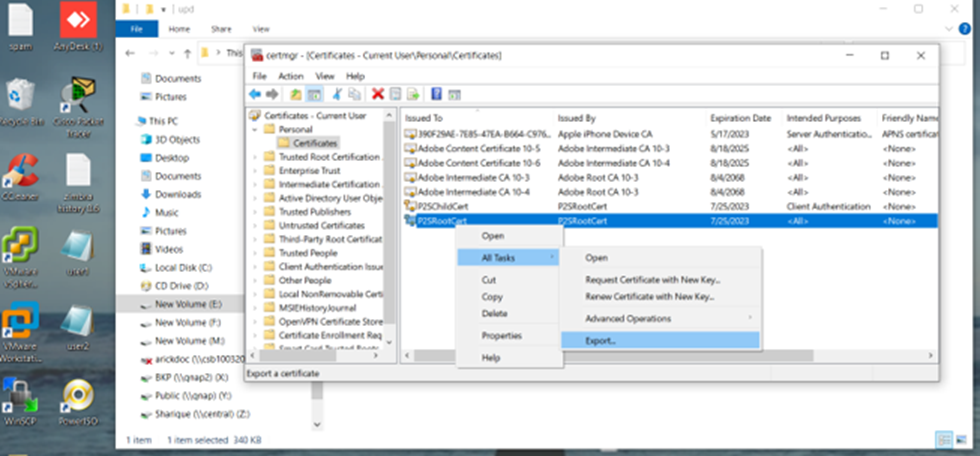

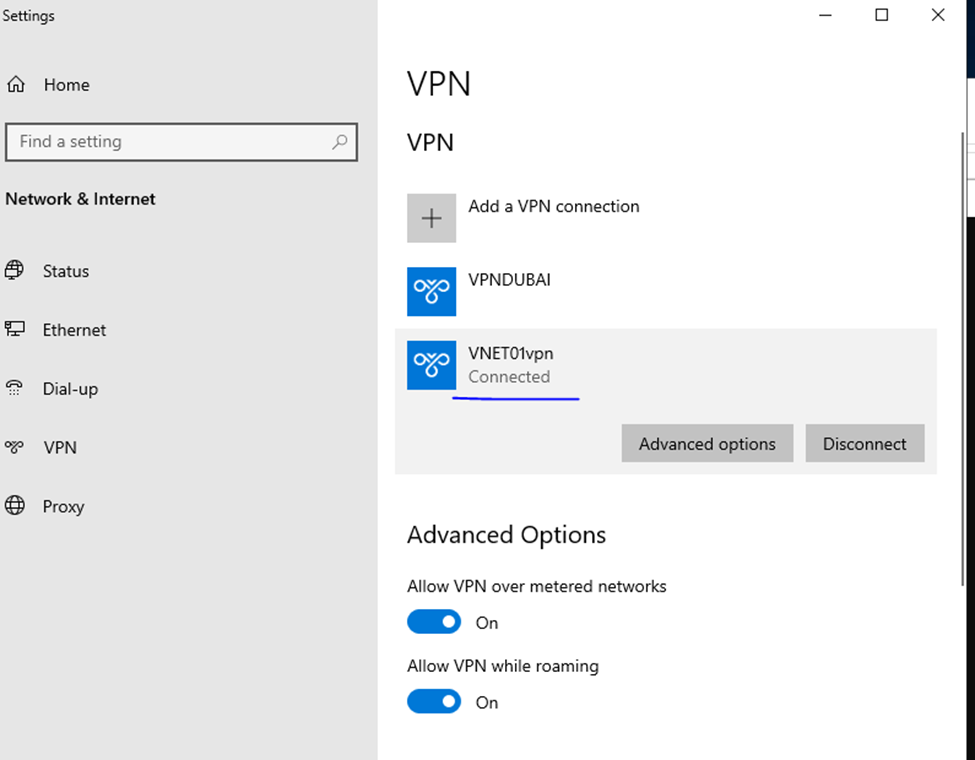

For Client

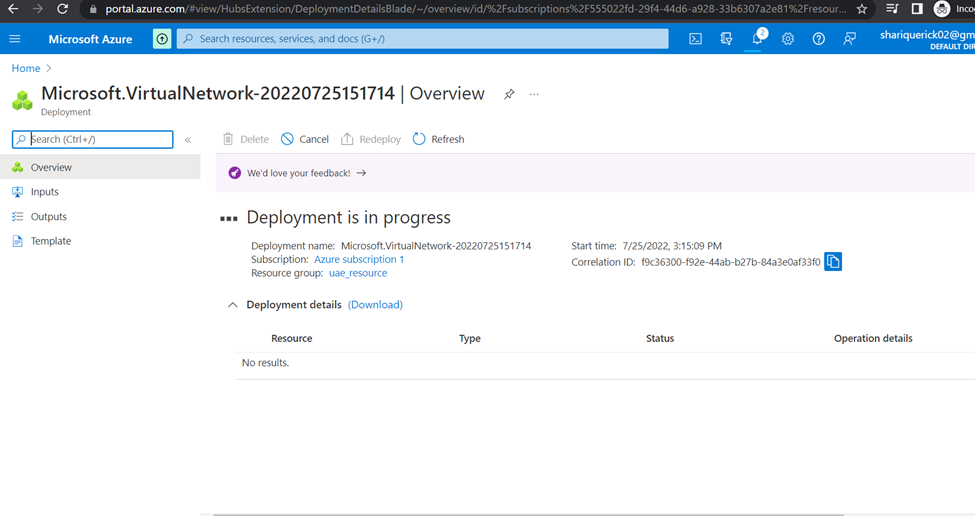

You can see the deployment status on the Overview page for your gateway. A gateway can take up to 45 minutes to fully create and deploy. After the gateway is created, you can view the IP address that has been assigned to it by looking at the virtual network in the portal. The gateway appears as a connected device.

You can see the deployment status on the Overview page for your gateway. A gateway can take up to 45 minutes to fully create and deploy. After the gateway is created, you can view the IP address that has been assigned to it by looking at the virtual network in the portal. The gateway appears as a connected device.
