PV | VG | LV

How to Increase Logical Volume size in RedHAT/Centos

Steps to Create Logical Volume in Centos or RedHat Linux Server.

First

check the already associated disks

fdisk -l

Add the new Virtual Disk to Server

–Scan the new created disks- if you are having host1 or till host2 disk scan according to that.

i am having only host1 disk active need to scan host2 disk like

echo “- – -” > /sys/class/scsi_host/host2/scan

–now creating new partition

fdisk /dev/sdb

and follow the instruction

–now creating Physical Volume

pvcreate /dev/sdb1

— extending VG – Volume group (working on default centos – So, VG Group is centos)

vgextend centos /dev/sdb1

–now increasing the Logical volume

vgextend centos /dev/sdb1

— Increasing the Logical Volume size

lvresize -L +5G /dev/centos/home

Adding 5GB to Home Directory and 5GB to Root Directory

Extend Disk Size

Add the New Drive and scan it

Fdisk -l

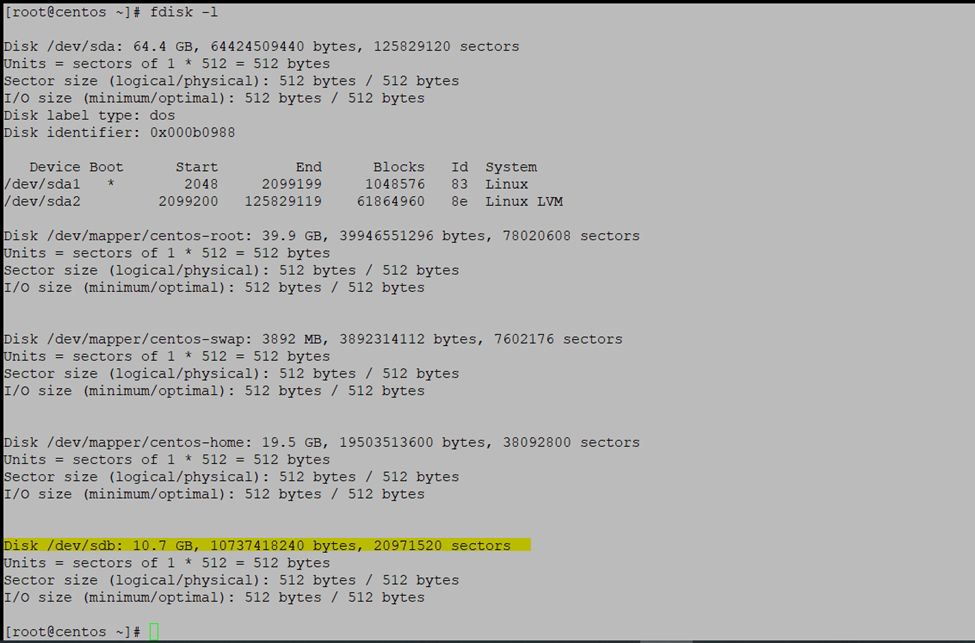

[root@centos ~]# fdisk -l

[root@centos ~]# lsblk

Now scanning the new added drive

[root@centos ~]# echo “- – -” > /sys/class/scsi_host/host2/scan

New added drive sdb

lblsk

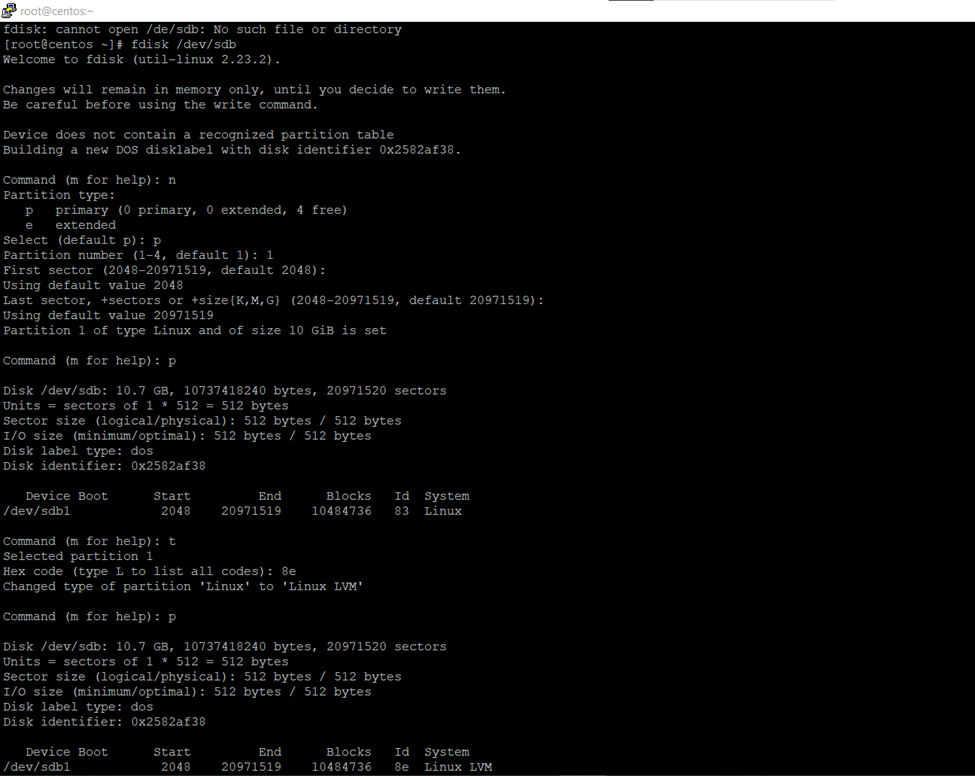

Now creating the partition

Fdisk /dev/sdb

Create a new partition type n

Create primary partition type p

In the single disk can create 4 partation so here creating only 1 partation

Type 1 single partition

And just press enter

And giving complete size

Just press enter

And type p for checking the created disk type

So, we want linux LVM type type

Type t and enter

And type p and check the type

Now press w and enter

To check newly created disk

Fdisk -l /dev/sdb

[root@centos ~]# fdisk -l /dev/sdb

So here I will increase the centos-home dir size

Will use xfs (because very fast processing speed)

Checking the current blocks size

[root@centos ~]# xfs_growfs -n /dev/centos/home

Now creating the PHYSICAL VOLUME

PVCREATE –

Pvcreate /dev/sdb1

[root@centos ~]# pvcreate /dev/sdb1

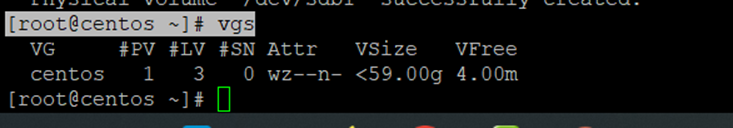

Check the volume group

[root@centos ~]# vgs

Extending logical volume size

Vgextend— volume group name / logical volume directory

[root@centos ~]# vgextend centos /dev/sdb1

After increased size

So, if you can check now having 10GB Volume Group free size

vgs

Df -h T

Increase the Home directory Size

Volume group : centos

Directory : home

Increasing disk size 5GB – Home Directory

[root@centos ~]# lvresize -L +5G /dev/centos/home

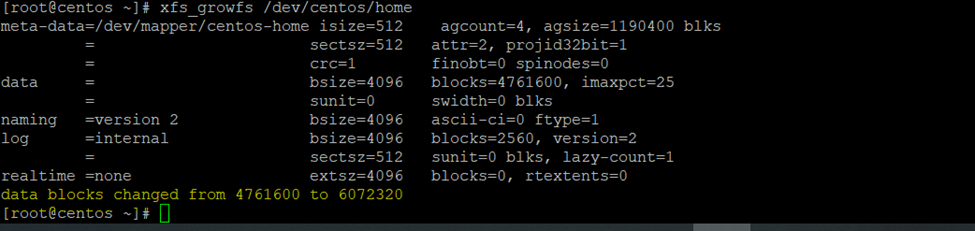

[root@centos ~]# xfs_growfs /dev/centos/home

[root@centos ~]# df -hT /home

[root@centos ~]# df -hT

Extending root size

Steps to Create Logical Volume in Centos or RedHat Linux Server.

First

check the already associated disks

fdisk -l

Add the new Virtual Disk to Server

–Scan the new created disks- if you are having host1 or till host2 disk scan according to that.

i am having only host1 disk active need to scan host2 disk like

echo “- – -” > /sys/class/scsi_host/host2/scan

–now creating new partition

fdisk /dev/sdb

and follow the instruction

–now creating Physical Volume

pvcreate /dev/sdb1

— extending VG – Volume group (working on default centos – So, VG Group is centos)

vgextend centos /dev/sdb1

–now increasing the Logical volume

vgextend centos /dev/sdb1

— Increasing the Logical Volume size

lvresize -L +5G /dev/centos/home

)

Increasing disk size 5GB – Root Directory

[root@centos ~]# lvresize -L +5G /dev/centos/root

[root@centos ~]# xfs_growfs /dev/centos/root

[root@centos ~]# df -hT /root/

Df -Ht

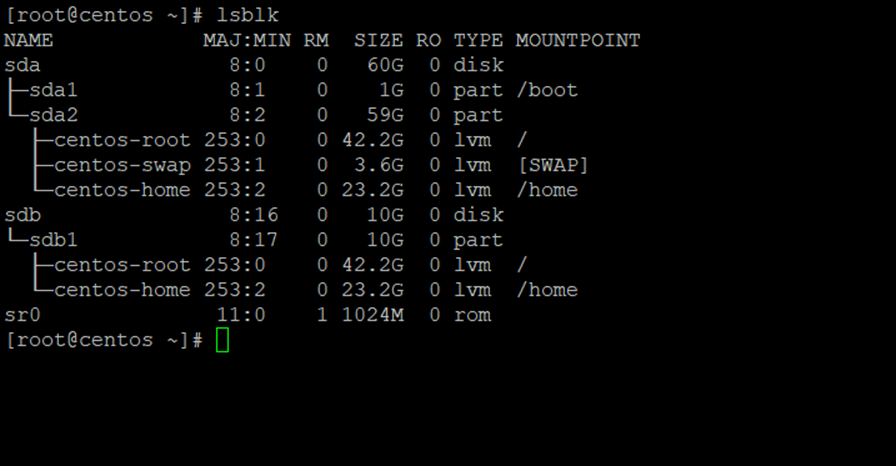

After extend root

Before extended root

How to Increase Logical Volume size in RedHAT/Centos

Here I am increasing the Root 30 GB size

Current Disk Structure

lsblk

[root@centos ~]# echo “- – -” > /sys/class/scsi_host/host0/scan

Lblsk

Fdisk -l

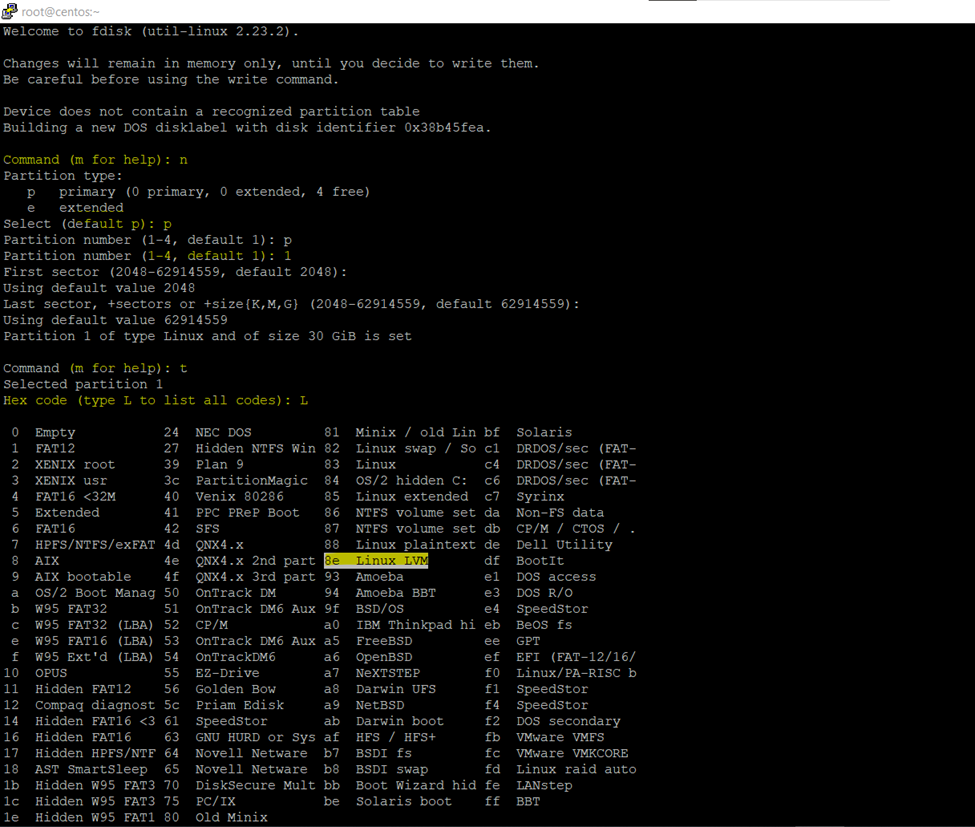

[root@centos ~]# fdisk /dev/sdc

Type n

Then p

Then 1

Then enter and enter

Then t

Then L

Then 8e

Then type p to check system type

8e

Then p

Then w exit

Now Checking the status newly created disk

[root@centos ~]# fdisk -l /dev/sdc

So, I have decided to add the disk size in root directory

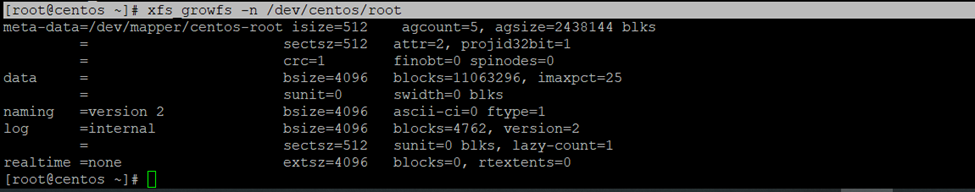

Checking the blocks size

[root@centos ~]# xfs_growfs -n /dev/centos/root

Creating physical volume

Pvcreate /dev/sdc1

[root@centos ~]# pvcreate /dev/sdc1

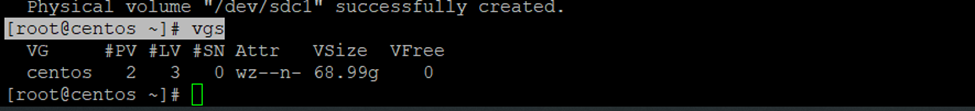

Current volume group details

[root@centos ~]# vgs

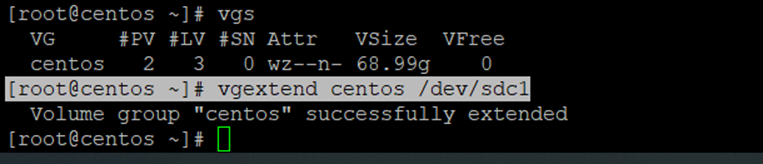

Now increasing the volume size to volume group

[root@centos ~]# vgextend centos /dev/sdc1

After extended the volume size

So, here increasing the root directory disk size

[root@centos ~]# lvresize -L +25G /dev/centos/root

[root@centos ~]# lvresize -L +4G /dev/centos/root

Xfs_growfs /dev/centos/root

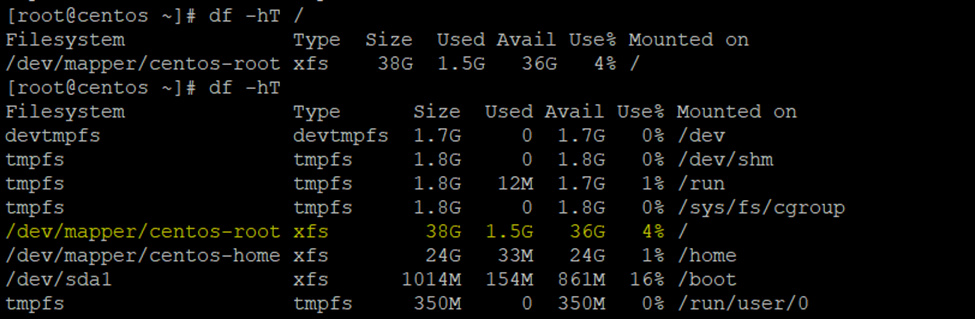

[root@centos ~]# df -hT /root/

[root@centos ~]# df -hT

Physical Volume current scenario structure

Pvs

[root@centos ~]# pvs

Volume Group current scenario structure

Vgs

Logical Volume current scenario structure

Lvs
